Plumbing Enclosures

SafeSpace enclosures offer freeze protection and security from vandalism.
SafeSpace Plumbing Enclosures

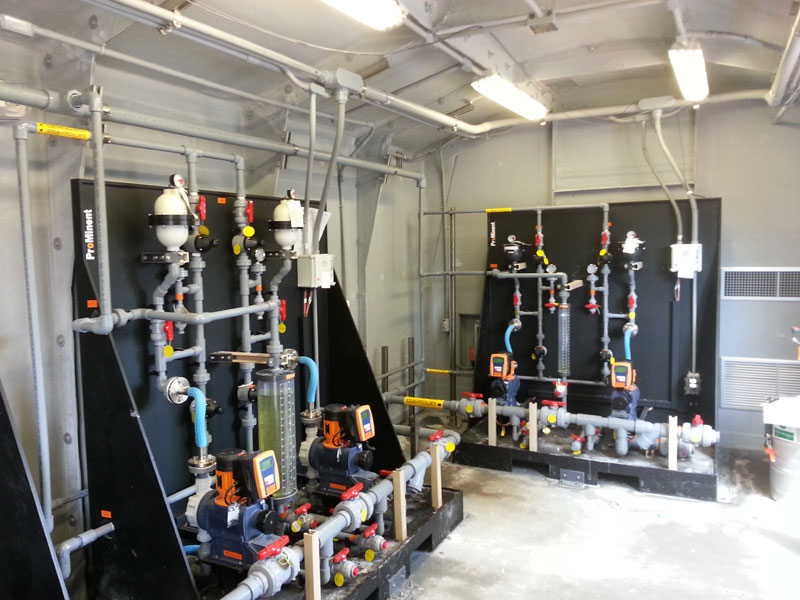

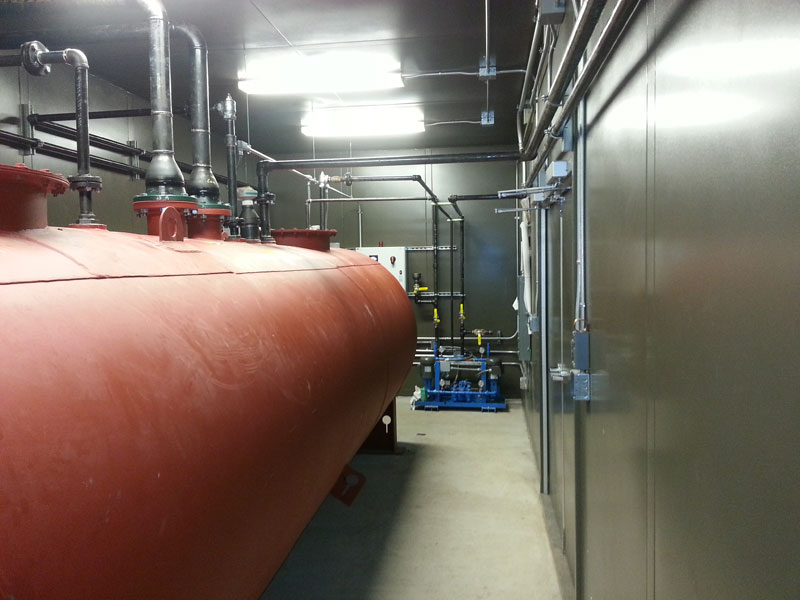

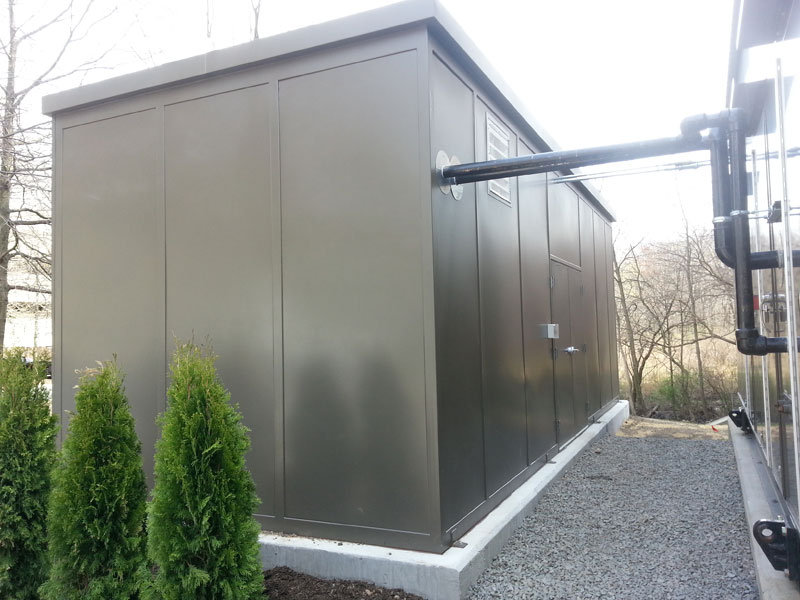

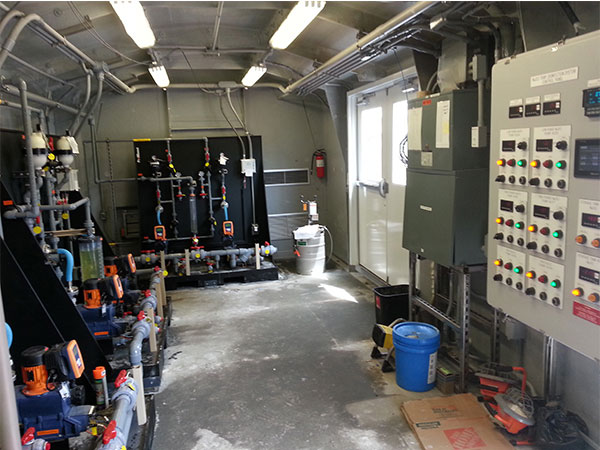

Our prefab plumbing and mechanical equipment enclosures provide protection for your piping, valves and control systems.

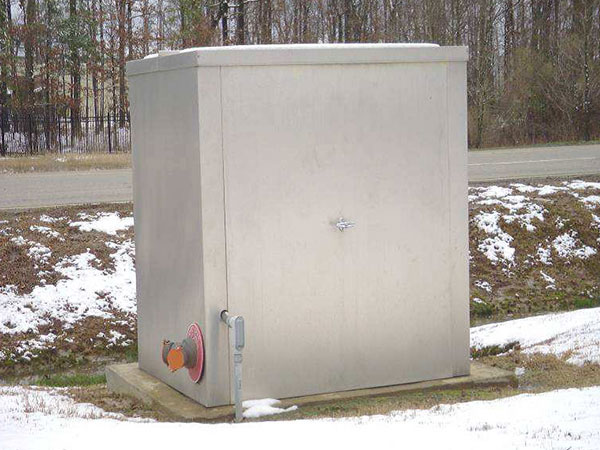

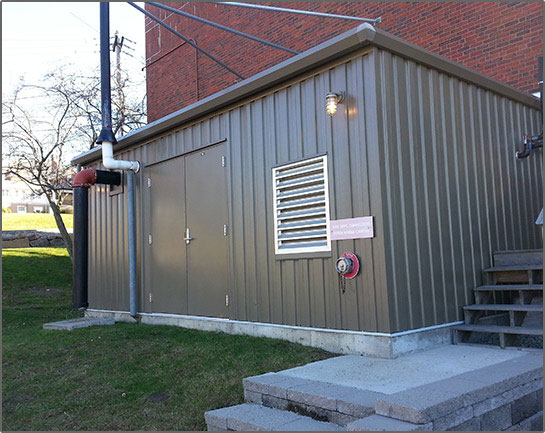

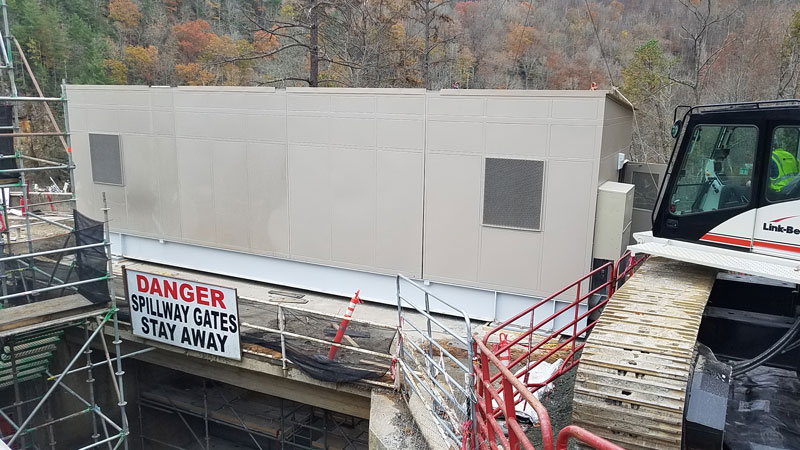

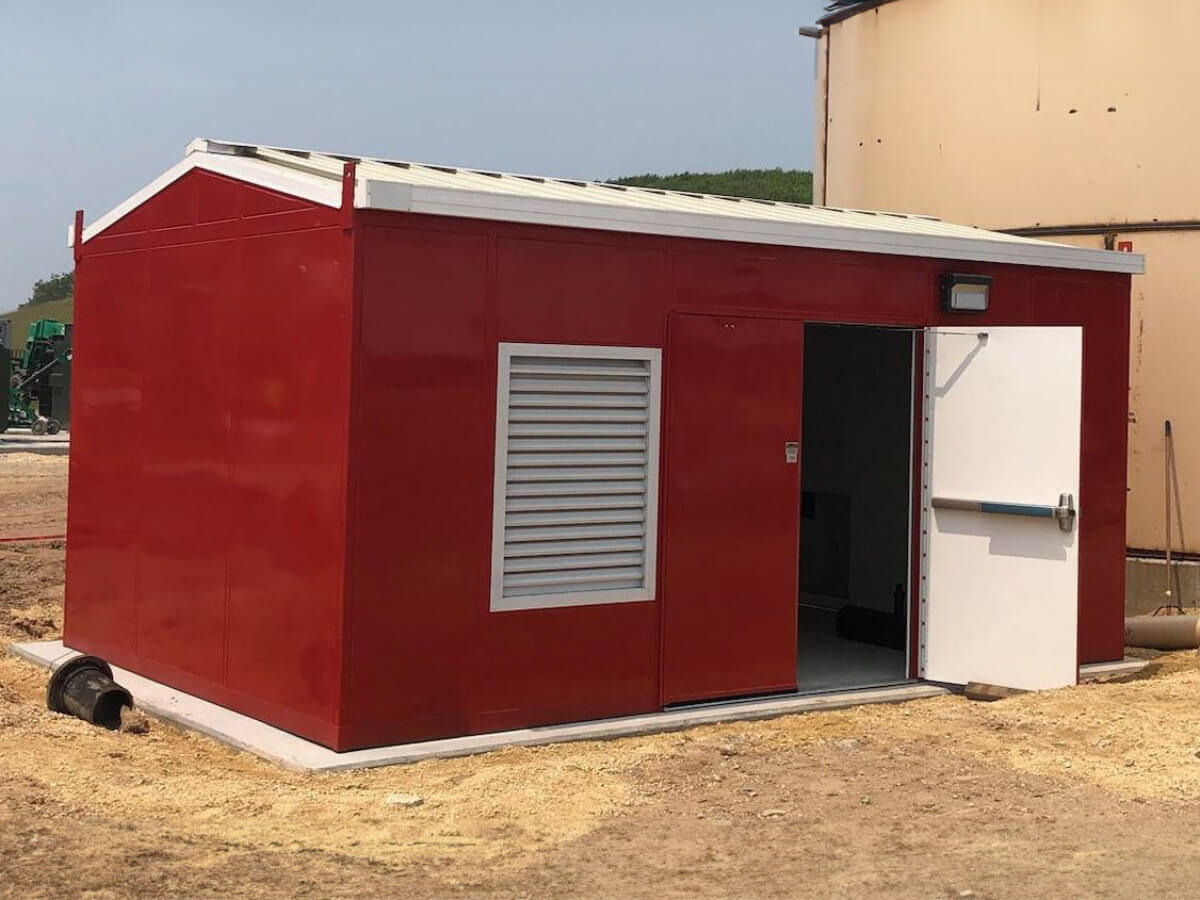

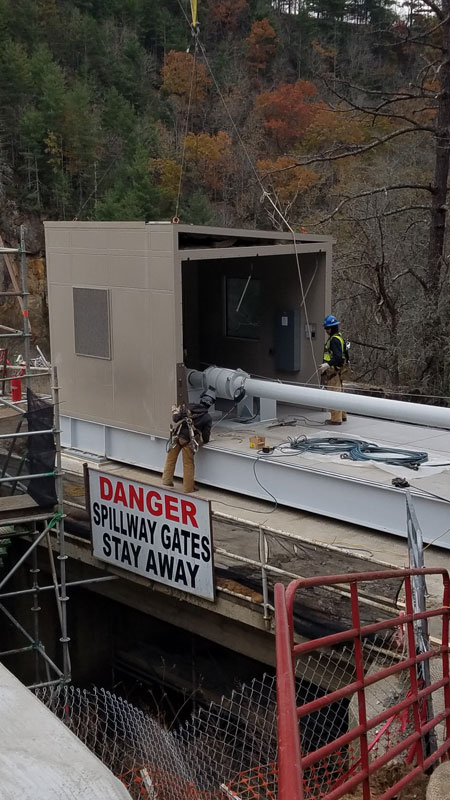

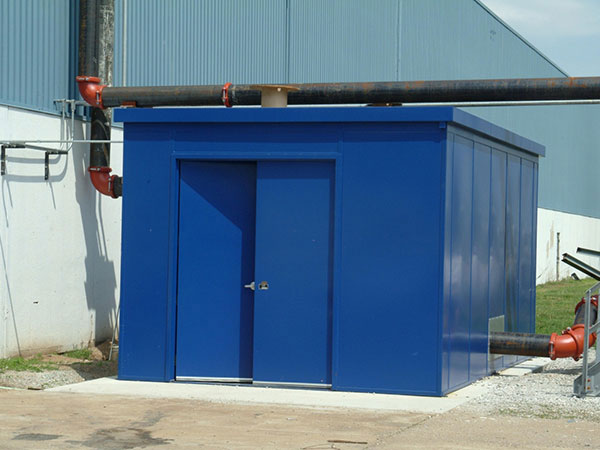

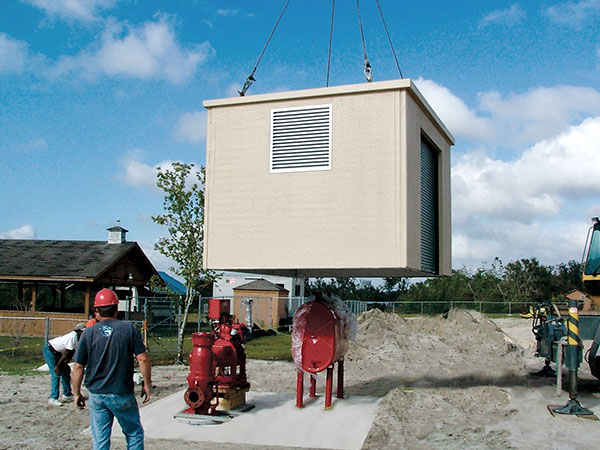

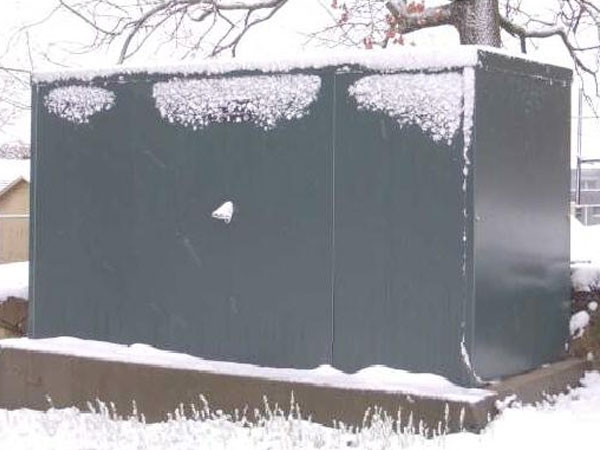

Our insulated and heated enclosures are ideal for freeze protection for critical systems and security from vandalism. Non-insulated shells are available as well. Our prefab valve house and pump house units can drop over your existing valves and pipes with an open bottom structure that mount directly to your existing slab or incorporate a floor system to mount your equipment. The prefabricated enclosure can also be roof mounted as a penthouse enclosure or on a mezzanine structure.

Materials of Construction

Steel enclosures: Extremely strong and durable.  Appropriate for high abuse environments, high wind, snow and seismic loads,
Fiberglass Enclosures: Light weight and strong.  Excellent corrosion resistance for chemical or marine applications.
Aluminum Enclosures: Good durability and corrosion resistance. Economical enclosure for small to medium size uses.

Size of Equipment Enclosure

Width: 6’ – 14’: Largest single piece is 14’ wide.  Larger widths available with multi-piece modular construction up to any width.
Length: 6’- 52’: Longest single piece is 52’, Longer buildings available using multi piece modular construction.
Height: 4’- 12’: Transportation regulations require less than 12’ height for the enclosures.

Standard Options

Doors: 36” and 6’ double swing doors or roll up doors are available
Windows: Insulated, laminated or bullet proof glass available
Electrical: Heat, ac, exhaust fan, lights are common options
Floors: “Open Bottom” units can be placed on your slab or insulated floor systems are    available with VCT, checker plate metal or rubber tile flooring.
Pipe penetrations: Provide us with the size and location of your pipepenetrations andthe factory will be cut and finish the opening to meet your requirements.
Engineering Certifications: Engineer stamped drawings, State Seals and other certifications may be required and are available.

Prices

Other sizes and additional features are available. Prices are exclusive of freight, taxes and installation. Steel units are 16 gauge, painted, R10 walls, R19 roof, steel door. Fiberglass units are 1″ sandwich panel, R12, fiberglass door. Larger, smaller or taller sizes, available, request a quote.  Contact us for a quote.

Prices Include Insulation, heat, lights, (1) 36″ door:

Note: Prices are estimates and may vary depending on location and specific equipment required. Excluded are freight, install, floor, foundation, taxes and stamped engineering (if required).
