Rooftop Enclosures

SafeSpace offers standard sizes or Customizable Prefab Rooftop Enclosures for your Exact Requirements

Our prefab modular rooftop enclosures provide protection for your electrical, HVAC or other mechanical system from the weather.

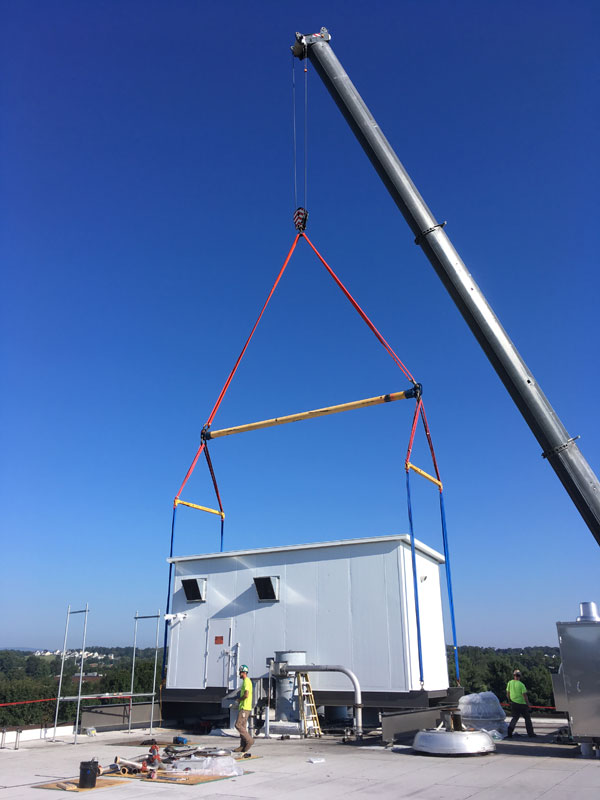

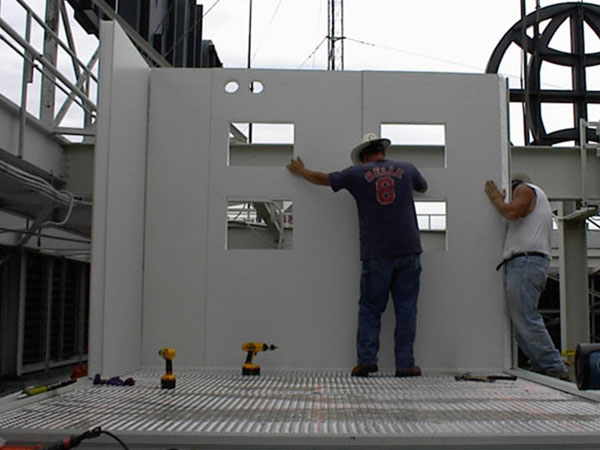

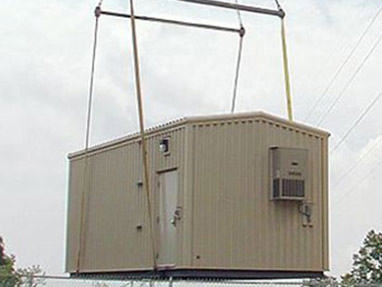

Moving your electrical and mechanical equipment to a rooftop enclosure saves space inside of the building and moves sensitive equipment above any flood danger. These modular prefabricated enclosures are also called penthouse enclosures, rooftop sheds or a mechanical doghouse. These modular prefab rooftop enclosures can be fully assembled, ready to be lifted into place or shipped as a kit to be assembled on site. High impact, wind and snow loads, fire ratings and any other specific requirements are pre-engineered into our modular enclosures to assure conformance with codes.


Materials of Construction

Steel enclosures: Extremely strong and durable.  Appropriate for high abuse environments, high wind, snow and seismic loads.
Fiberglass Enclosures: Light weight and strong.  Excellent corrosion resistance for chemical or marine applications.
Aluminum Enclosures: Good durability and corrosion resistance. Economical enclosure for small to medium size uses.

Size of Equipment Enclosure

Width: 6’ – 14’: Largest single piece is 14’ wide.  Larger widths available with multi-piece modular construction up to any width.
Length: 6’- 52’: Longest single piece is 52’, Longer buildings available using multi-piece modular construction.
Height: 4’- 12’: Transportation regulations require less than 12’ height for the enclosures.

Standard Options

Doors: 36” and 6’ double swing doors or roll up doors are available
Windows: Insulated, laminated or bullet proof glass available
Electrical: Heat, ac, exhaust fan, lights are common options
Floors: “Open Bottom” units can be placed on your slab or insulated floor systems are    available with VCT, checker plate metal or rubber tile flooring.
Pipe penetrations: Provide us with the size and location of your pipe penetrations and the factory will be cut and finish the opening to meet your requirements.
Engineering Certifications: Engineer stamped drawings, State Seals and other certifications may be required and are available.
